Inlet Vacuum Filter 2BX4 083 Ordering Data and Performance Data

2BX4 083

Model: 2BX4 083

Inlet Vacuum Filter 2BX4 083

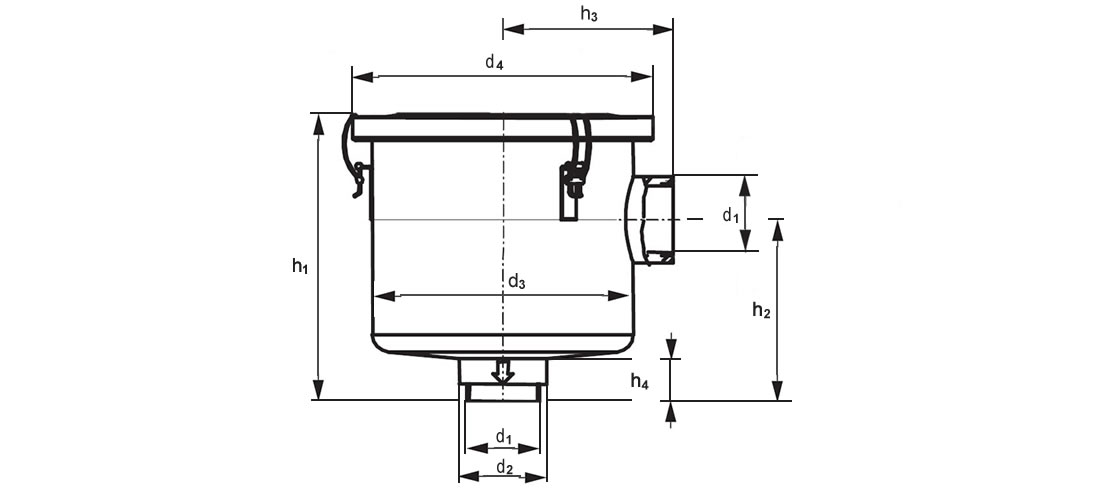

Dimension for Inlet Vacuum Filter

2BX4 083
Type material FPT Inlet & Outlet d1 d2 d3 d4 h1 h2 h3 h4 Rated Flow (m³/min) Approx.wt.(kg)
2BX4 083 with polyester element 2 ½" G 2 ½ 86 194 217 256 129 110 13 6.0 4.3
Note:Model offerings and design parameters may change without notice.
