Inlet Vacuum Filter 2BX4 081 Ordering Data and Performance Data

2BX4 081

Model: 2BX4 081

Inlet Vacuum Filter 2BX4 081

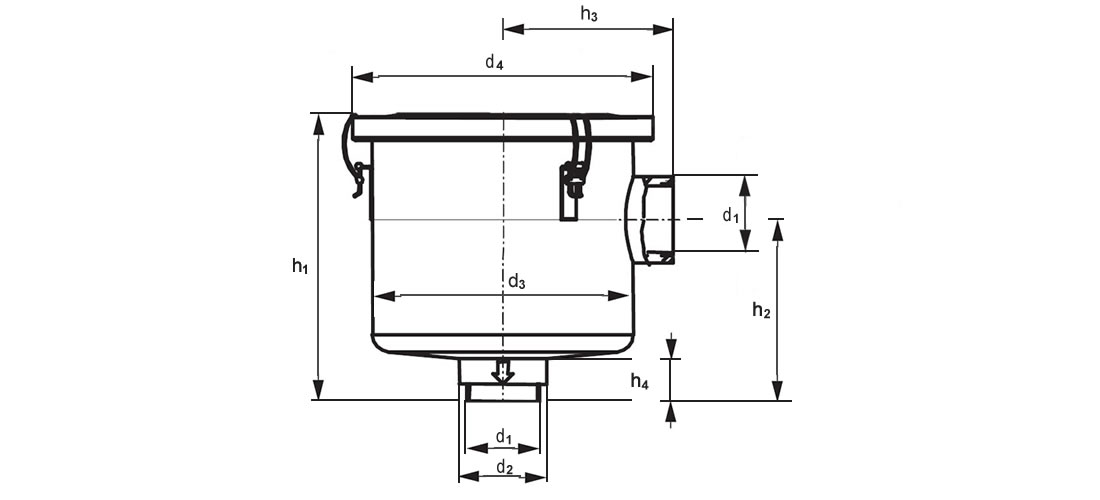

Dimension for Inlet Vacuum Filter

2BX4 081
Type material FPT Inlet & Outlet d1 d2 d3 d4 h1 h2 h3 h4 Rated Flow (m³/min) Approx.wt.(kg)
2BX4 081 with polyester element 1 ½" G 1 ½ 53 172 188 167 111 100 16 2.4 2.3
Note:Model offerings and design parameters may change without notice.
